The b-ISOBUS Spy tool is an application to analyse messages in ISOBUS networks.

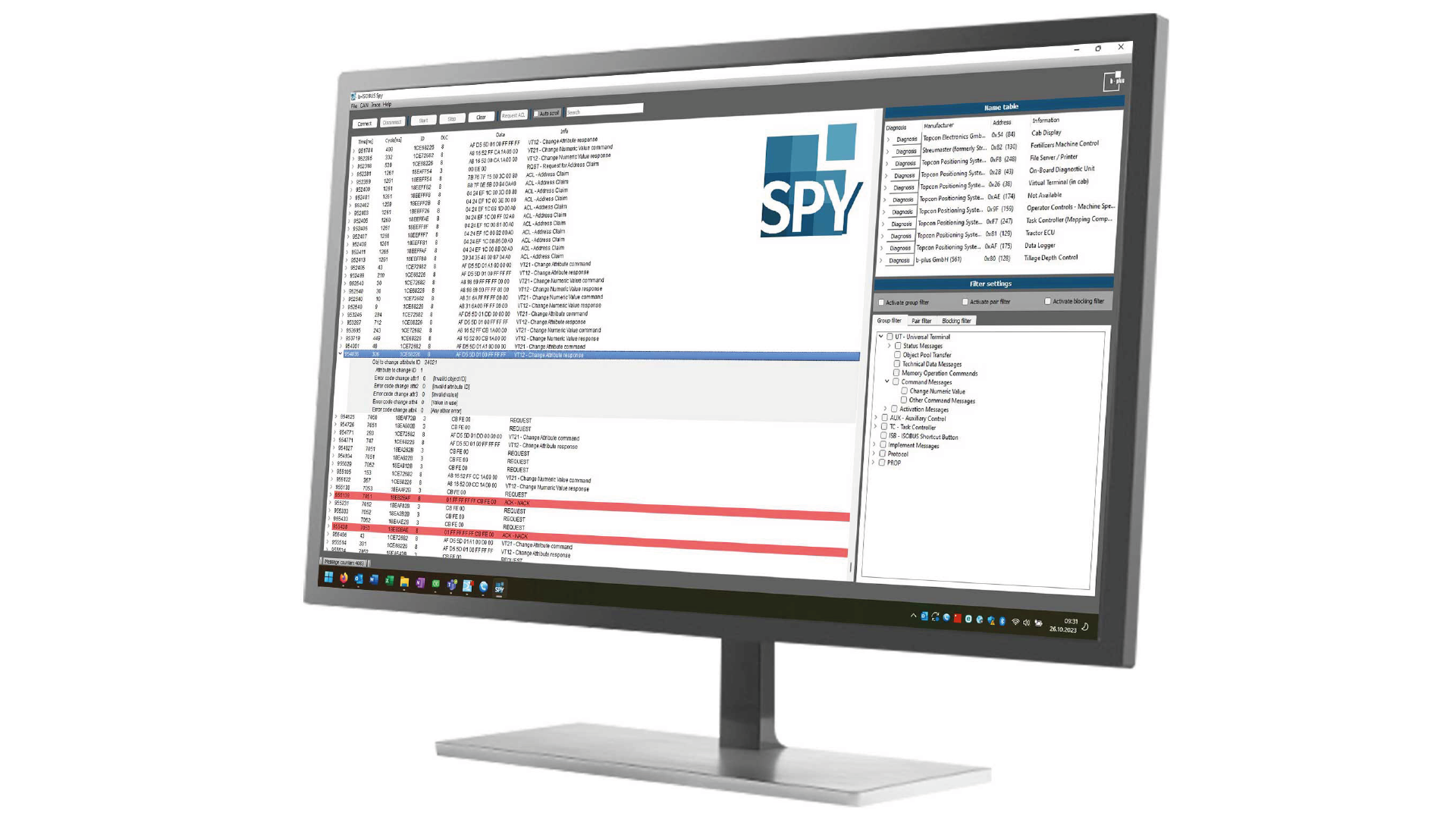

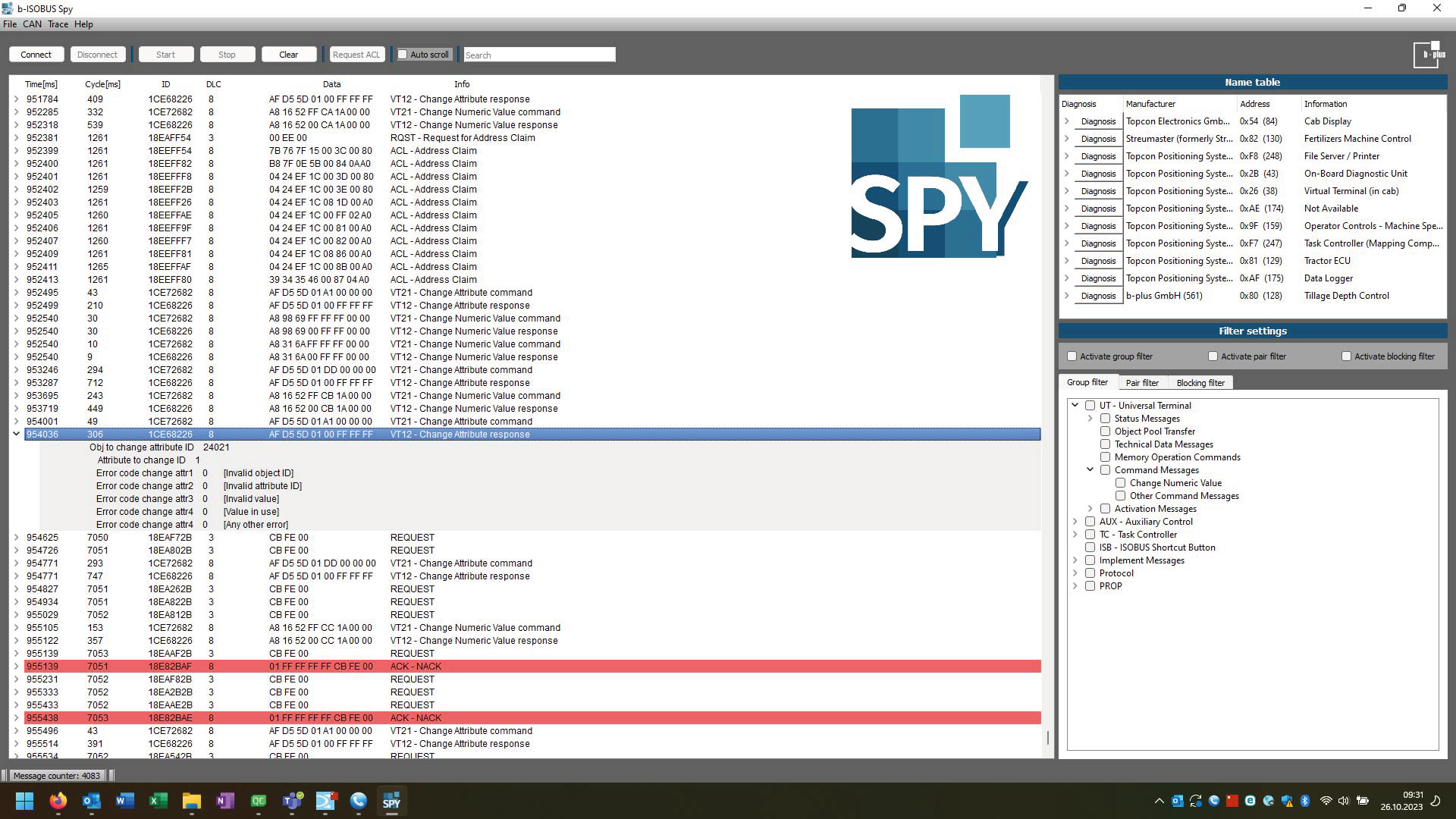

The b-ISOBUS Spy allows you to see all the information that is sent in your ISOBUS network. The tool will display all the nodes and record all messages sent between them in a trace. It will not only show you all the data like cycle-time, ID, data etc. but also interprets the given data for you.
The interpretation is made corresponding to the ISOBUS standards in ISO 11783. In your trace you will see the name of the command next to the other raw data. If you want to see more information you can expand the line to see all the signals the message contains. In case a message contains an error it will be marked, so you can recognize the error very quickly.
The information about the nodes is shown in a separated table called the “Name Table”. This way you can always see the information of your nodes and which source address belongs to which participant in your network.
Furthermore you have the option to use filters to show only the data you want to see. There are three different settings of filters.
You can even combine all of these options.
If you recorded a trace, you can save it as a txt-file and load it back into the program later. When importing a trace into the program, all the data will be interpreted again.
The b-ISOBUS Spy is compatible with the CAN USB adapter from PEAK™ and the CANfox™ from Sontheim. The support for other adapters might be added in future updates.
b-ISOBUS Spy
Key Features
The b-ISOBUS Spy tool allows for a visual representation of all nodes within an ISOBUS network. You get a complete overview of the individual nodes in a separate table and can instantly see the corresponding source addresses and participants within the network.
The tool interprets the collected data according to the ISOBUS standards in ISO11783, which was specifically developed for agricultural machinery. This ensures that the displayed information is standardized and compatible with other ISOBUS systems.
The b-ISOBUS Spy is compatible with various CAN-USB adapters, including PEAK™ and CANfox™ from Sontheim. This makes it easier to integrate into existing hardware environments.
The filtering function allows you to display only the data relevant to your analysis. There are three different filtering options, which can be combined to reduce the data to the essentials.
b-ISOBUS Spy records all messages sent in a trace, which you can save and load into other programs for further analysis.
Complete your setup
Order information
Name | Order number | Description |
b-ISOBUS Spy | B12800-SPY-001-0001 | CAN communication interpreter for ISOBUS |
