When it comes to the automation of mobile machines, the use of intelligent control elements is indispensable. Our controllers are specially designed for use under difficult conditions and have the appropriate approvals for the respective area of application. Our portfolio ranges from compact small controllers of the b-CANCube product family from our company to freely programmable and powerful controllers from our partners. Thanks to our many years of experience as system integrators, we have in-depth knowledge of bus communications such as ISOBUS, J1939, CANopen and CAN. This allows us to ensure that you always find the right controller for your project.
Due to our own stock keeping including also trade partner hardware like e.g. ifm electronic CR0403, CR0451 etc., Topcon OPUS A3, and many more, we are able to deliver promptly, commission-related and also with software pre-flashed articles directly.
We are happy to implement these in individual developments according to your specific requirements.

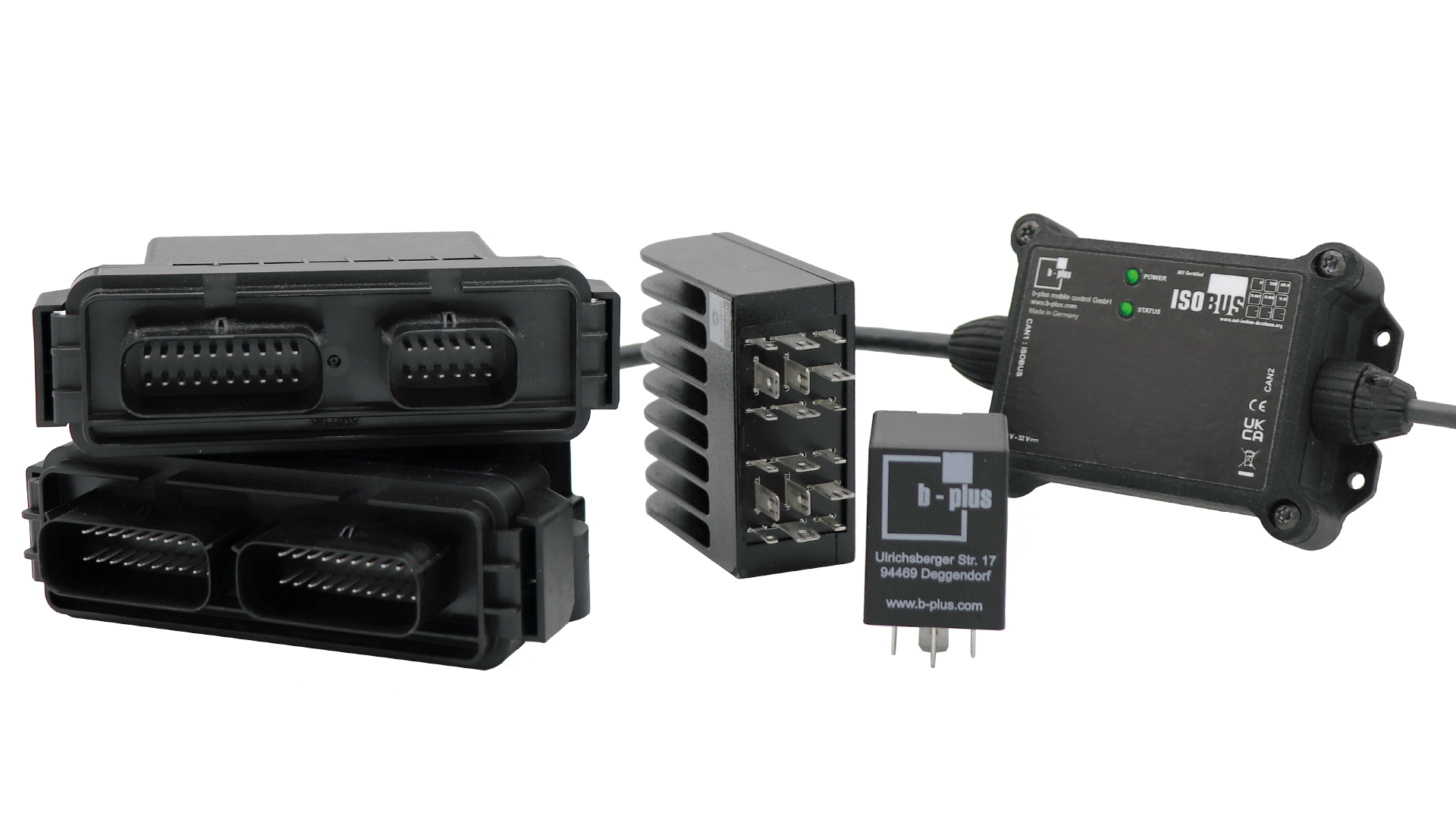

Mobile controllers
We offer you a wide range of displays and controllers of ifm electronic and TTControl/HYDAC.
For further information please contact our sales team or you can use our contact form.

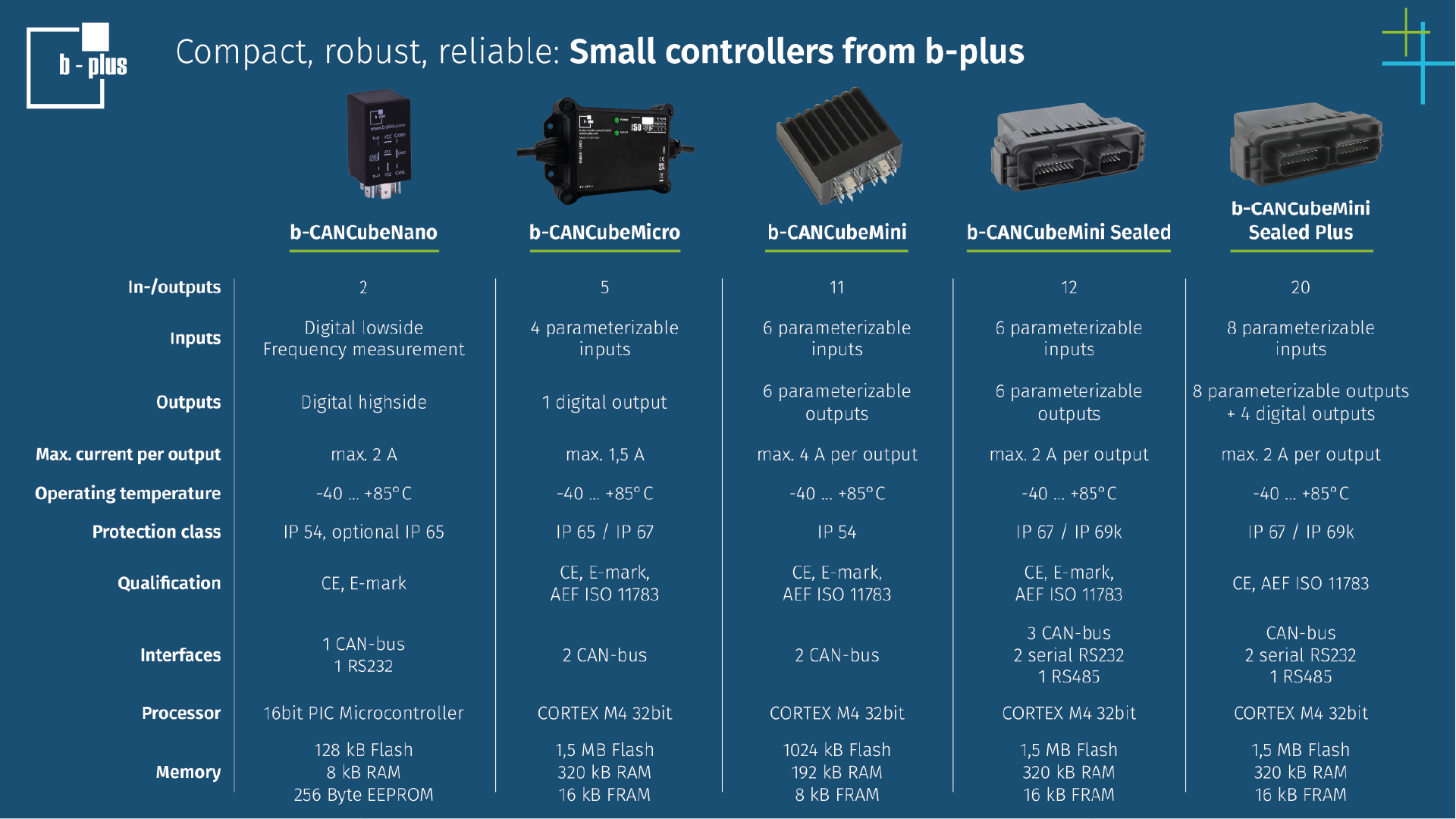

b-CANCubeNano and b-CANCubeMicro
b-CANCubeNano
|
b-CANCubeMicro
|
|
|---|---|---|
Inputs/Outputs |
2 |
5 |
Inputs |
Digital lowside (for positive sensor signals) Frequency measurement 1 Hz - 800 kHz |
4 inputs, parametrizable as - Voltage messurement 0-32V 12bit resolution, accuracy 3% FS Internal resistance 114kOhm - Digital – Low-Side (Plus signal measurement) Internal resistance 114kOhm |
Outputs |
Digital highside max. 2 A (drives power supply) |
1 Output - Digital High-Side (Plus switching) e.g. for sensor supply (max. 1,5A) Protection against short circuit and excess temperature, diagnostic capability |
Max. current per output |
max. 2 A |
max. 1,5 A |
Operating temperature |
-40 … +85°C |
-40 … +85°C |
Protection class |
IP 54 IP65 with optional sealed socket |
IP65 |
Qualification |
CE E-mark |
CE E-mark ECE-R10 AEF ISO 11783 |
Dimensions |
50 x 30 x 30 mm |
104 x 29 x 72 mm |
Interfaces |
Bus interface 1 CAN-Bus (High-Speed) according to ISO 11898-2 11 and 29 bit Identifier Serial interface 1 RS232 (Tx, Rx, Gnd) |
2 CAN-Bus (High-Speed) according to ISO 11898-2 |
Power supply |
8 - 32 V DC |
8 - 32 V DC |
Processor |
16 bit PIC Microcontroller 40 MIPS |
CORTEX M4 32bit |
Memory |
128 kB Flash 8 kB RAM 256 Byte EEPROM |
1,5 MB Flash 320 kB RAM 16 kB FRAM |
|
get more info on the
b-CANCubeNano |
get more info on the
b-CANCubeMicro |
b-CANCubeMini variants
b-CANCubeMini
|
b-CANCubeMini Sealed
|
b-CANCubeMini Sealed Plus
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inputs/outputs |
11 |
12 |
20 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Inputs |
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Outputs |
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. current per output |
max. 4 A per output |
max. 2 A per output |
max. 2 A per output |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating temperature |
-40 … +85°C |
-40 … +85°C |
-40 … +85°C |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection class |
IP 54 |
IP 67 IP 69k |
IP 67 / IP 69K |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Qualification |
CE E-mark AEF ISO 11783 |
CE E-mark AEF ISO 11783 |
CE Mark |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
71 x 73 x 32 mm |
128 x 94 x 41 mm |
128 x 94 x 41 mm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interfaces |
2 CAN-Bus (High-Speed) according to ISO 11898-2 |
3 CAN-Bus (High-Speed) according to ISO 11898-2 2 serial RS232 (RxD, TxD, GND) 1 RS485 (A, B) |
3 CAN-Bus (High-Speed) acc. ISO 11898-2 2 Serial RS232 (RxD, TxD, GND) 1 RS485 (A, B) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power supply |
8 - 32 V DC |
8 - 32 V DC |
8 ... 32 V DC |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Processor |
CORTEX M4 32 bit |
CORTEX M4 32bit, 100 MHz |
CORTEX M4 32bit, 100MHz |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Memory |
1024 kB Flash 192 kB RAM 8 kB FRAM |
1,5 MB Flash 320 kB RAM 16 kB FRAM |
1,5MB Flash 320kB RAM 16kB FRAM |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
get more info on the
b-CANCubeMini |
get more info on the
b-CANCubeMini Sealed |
get more info on the
b-CANCubeMini Sealed Plus |
