CANPowerSupply is a CAN connection cable with integrated termination, which was designed for mobile use.

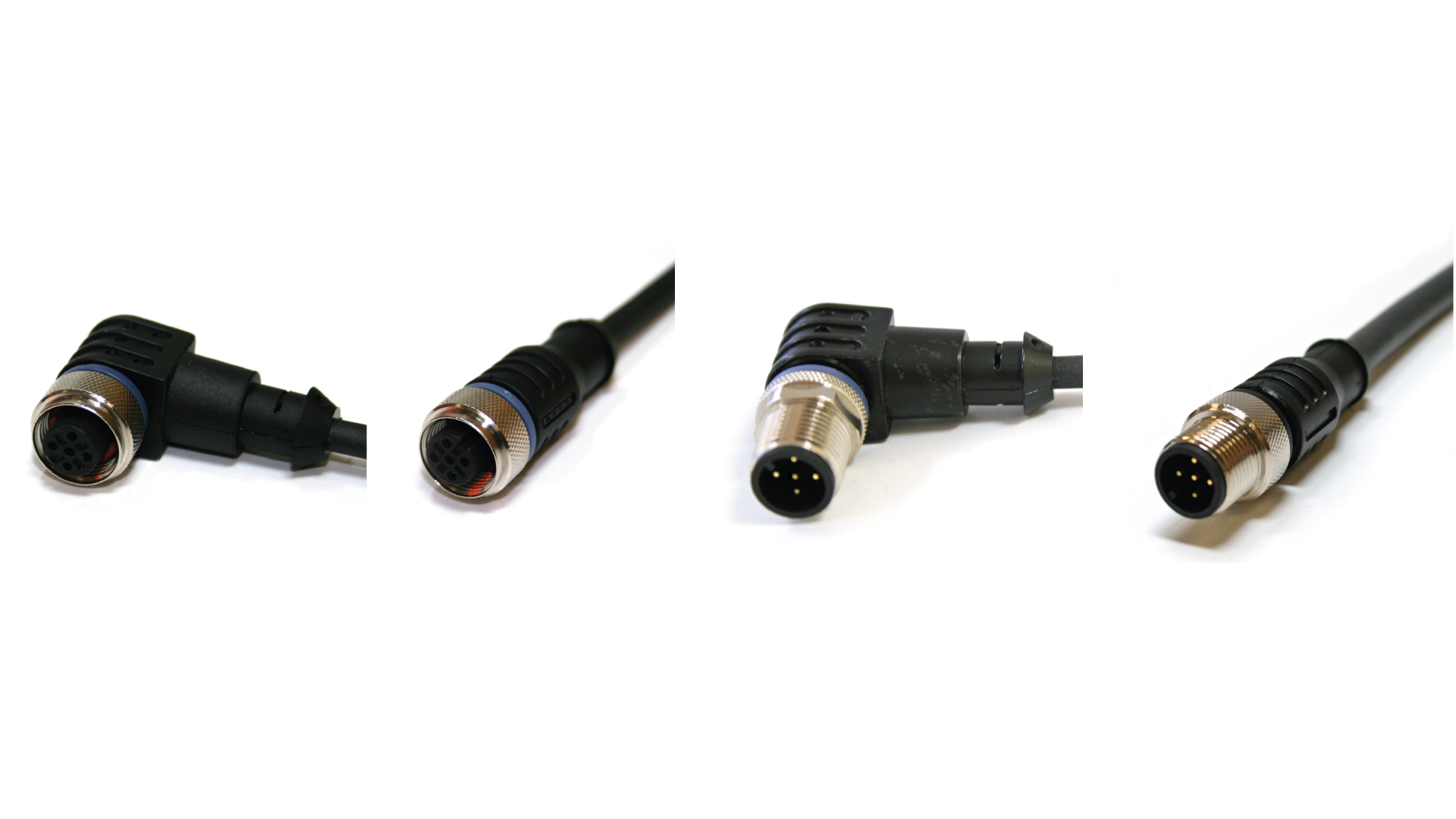

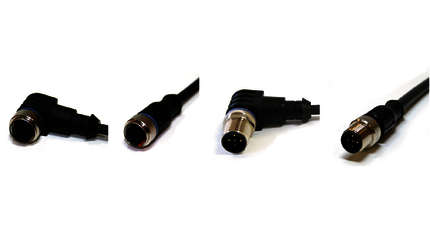

The robust M12 female connector is available in tilted and straight versions.
The PUR CAN/DeviceNET™ - cable is made of an oil-resistant material and the wires are twisted. Additionally to that the color coding is realized according to the standard coding in mobile constructions.
Flexibility for your project
CANPowerSupply
|
|
|---|---|
Type of protection |
IP67 |
Socket design |
M12 A-coding Angled / Straight |
Cable |
5 m, 10 m or 15 m (other lengths on request)
PUR cable, black 2 x 0.25mm² + 2 x 0.34mm² |
Ambient temperature |
-30 … +90°C |
|
get more info on the
CANPowerSupply |
Complete your setup
| Name | Order number | Description |

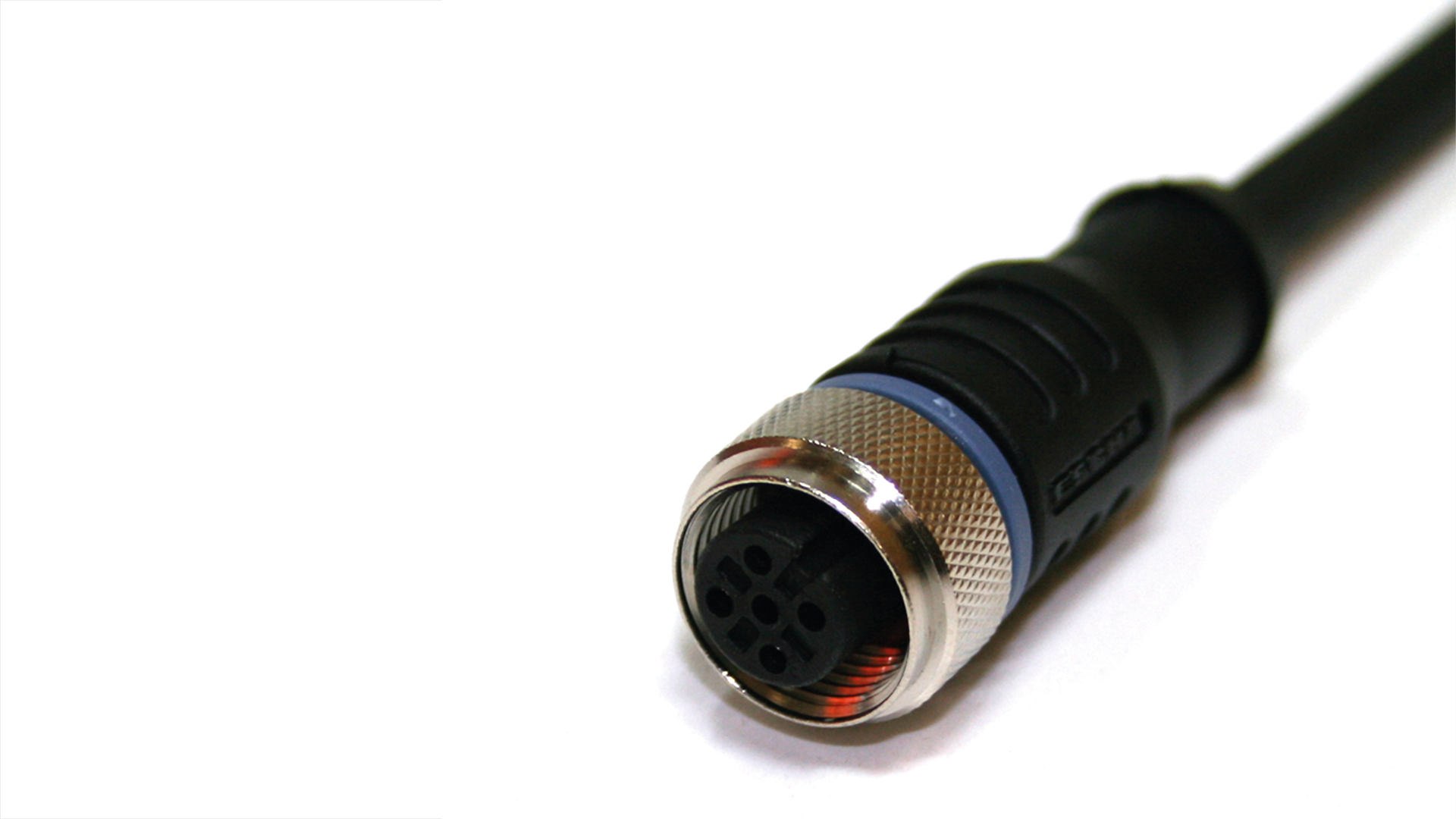

| CANPowerSupply | B12090-CPS-001-XXXX | M12 cable socket straight XXXX cm 4-pole CAN cord with 120 Ohm resistor |

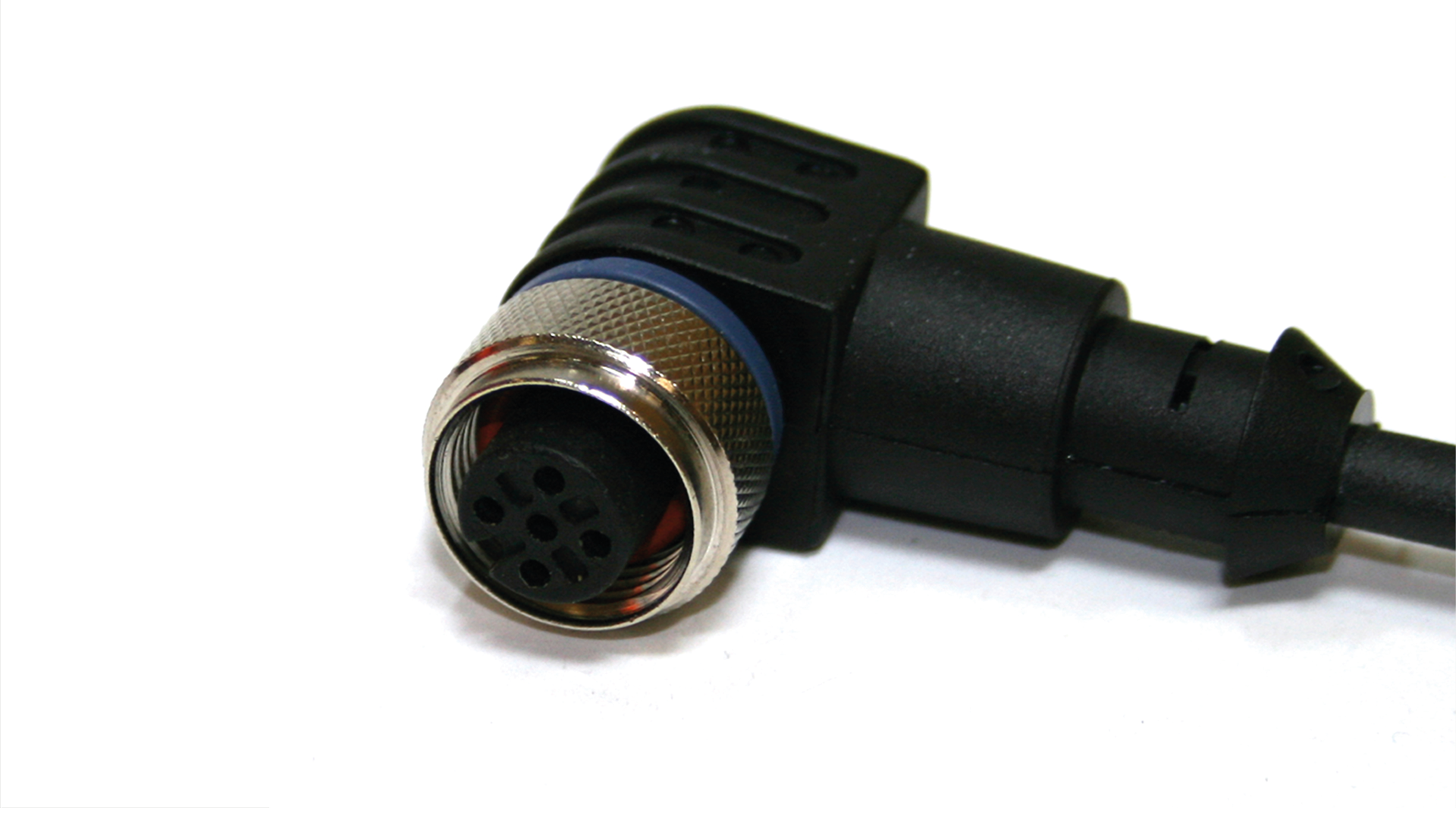

| CANPowerSupply | B12090-CPS-002-XXXX | M12 cable socket tilted xxxx cm 4-pole CAN cord with 120 Ohm resistor |
XXXX = Cable length in cm (0500, 1000, 1500 available as standard)
| Name | Order number | Description |

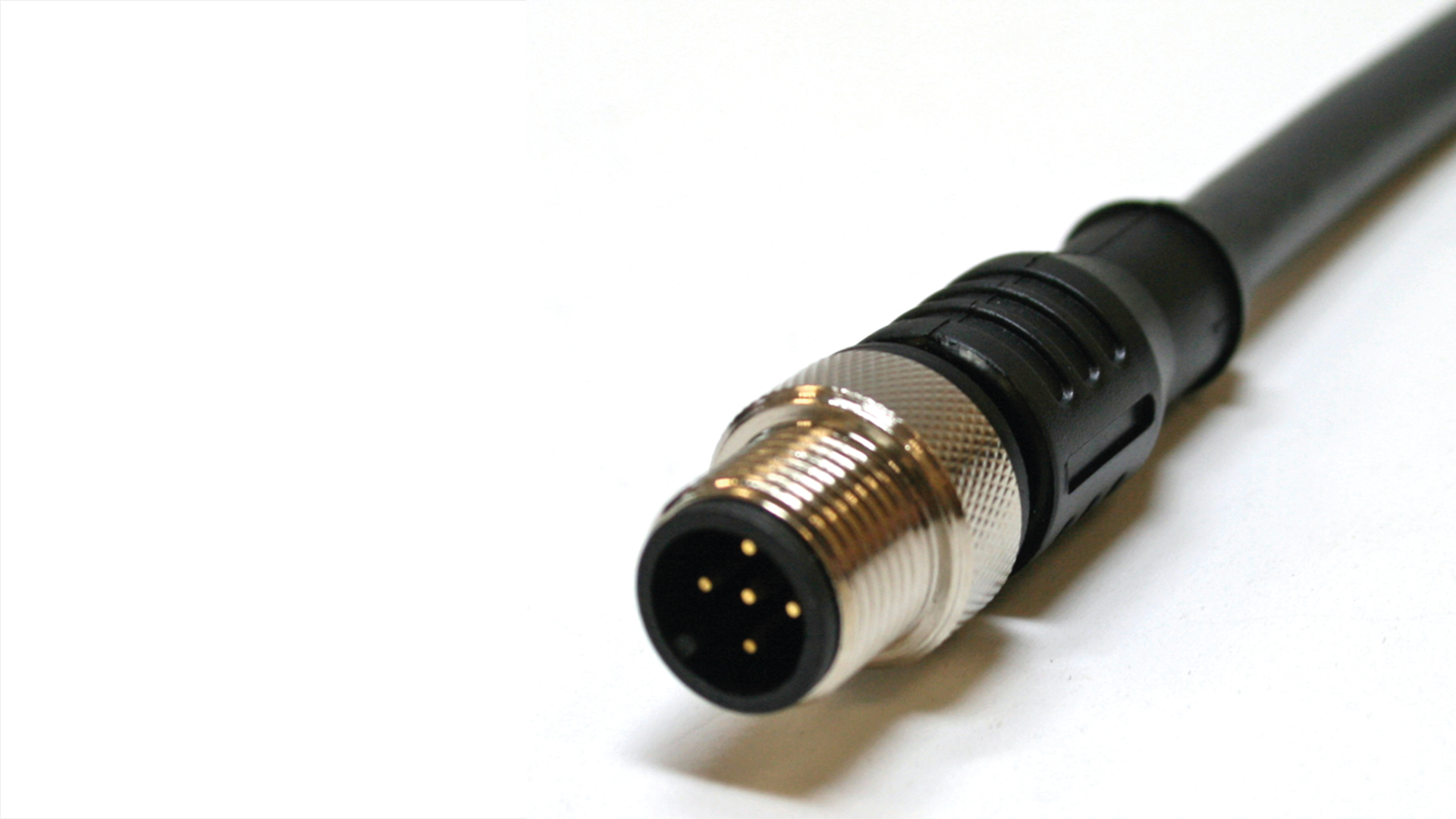

| CANPowerSupply | B12090-CPS-003-XXXX | M12 cable socket straight XXXX cm 4-pole CAN cord with 120 Ohm resistor |

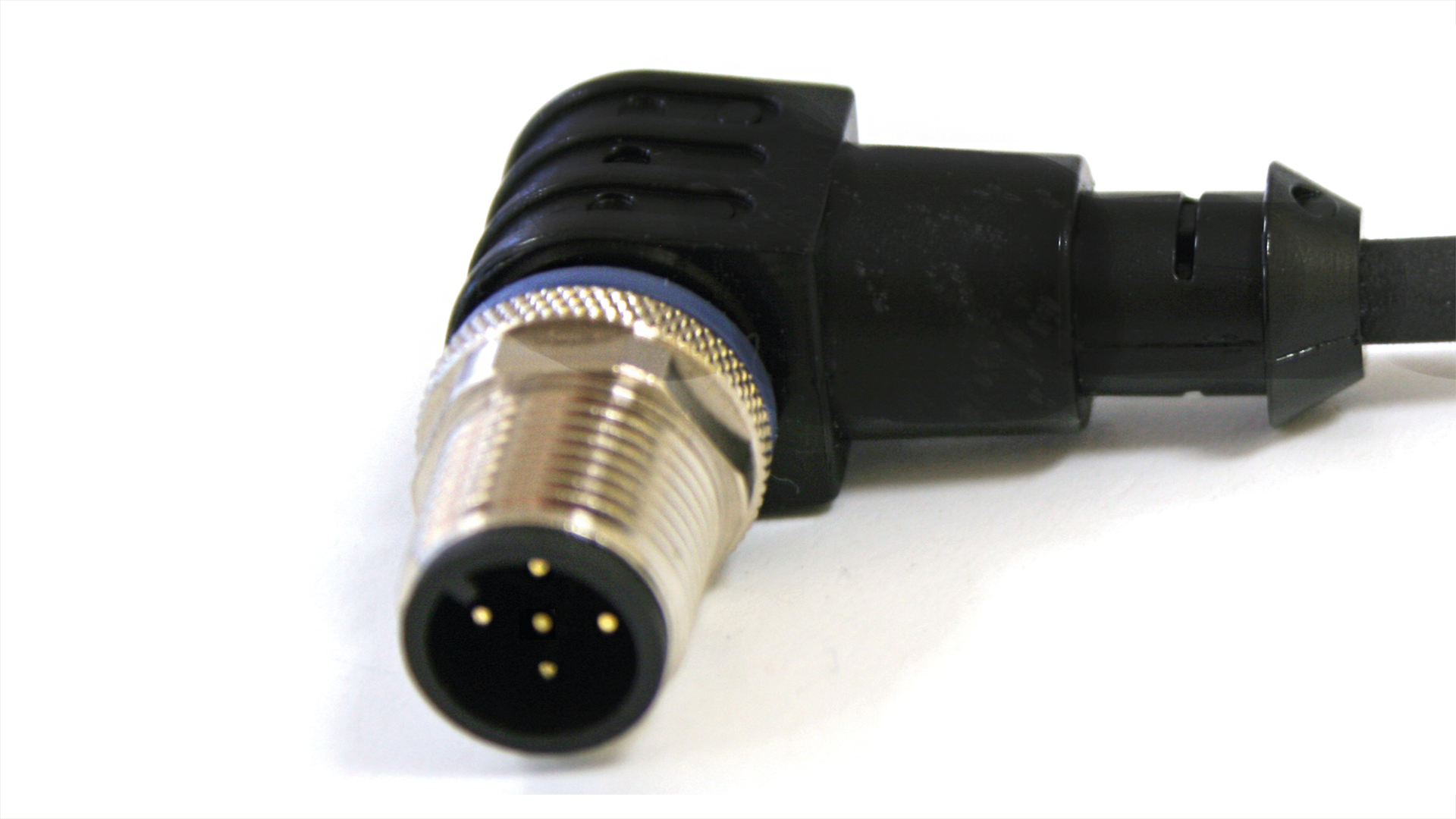

| CANPowerSupply | B12090-CPS-004-XXXX | M12 cable socket tilted XXXX cm 4-pole CAN cord with 120 Ohm resistor |
XXXX = Cable length in cm (0500, 1000, 1500 available as standard)
